TDCL Series Solid Core Liquid Line Filter Drier
TDCL Series Solid Core Liquid Line Filter Drier
Product Description:
- This filter drier uses 80% 3A molecular sieve core and 20% active aluminum inside, it is a perfect core mixture for the equipment system which has strong drying requirement and work under lowest frozen temperature. It has a best result to apply to refrigeration of CFC & HCFC(R22, R502) using with the petrol and ALKY-phenyl oil.
- Joint type: ODF or SAE
- Corrosive resistance mold
- For a variety of refrigerant Maximum working pressure: 4.70Mpa/680Psig
- UL Listed

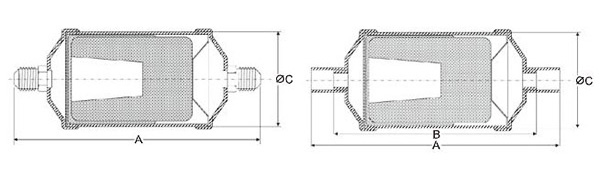

| MODEL | CONNECTION(IN) | A(IN) | B(IN) | C(IN) |
| TDCL-032 | 1/4 SAE | 4.41 | …… | 2.13 |
| TDCL-032S | 1/4 ODF | 3.99 | 2.76 | |
| TDCL-033 | 3/8 SAE | 4.84 | …… | |
| TDCL-033S | 3/8 ODF | 4.15 | 2.76 | |
| TDCL-052 | 1/4 SAE | 4.76 | …… | |
| TDCL-052S | 1/4 ODF | 4.35 | 2.95 | |
| TDCL-053 | 3/8 SAE | 4.84 | …… | |
| TDCL-053S | 3/8 ODF | 4.5 | 2.95 | |
| TDCL-082 | 1/4 SAE | 5.37 | 3.98 | |
| TDCL-082S | 1/4 ODF | 6.22 | …… | |
| TDCL-083 | 3/8 SAE | 5.45 | 3.98 | |
| TDCL-083S | 3/8 ODF | 6.38 | …… | |
| TDCL-084 | 1/2 SAE | 5.51 | 3.98 | |
| TDCL-084S | 1/2 ODF | 5.37 | 3.98 | |
| TDCL-162 | 1/4 SAE | 6.42 | …… | 3.00 |
| TDCL-162S | 1/4 ODF | 5.97 | 4.8 | |
| TDCL-163 | 3/8 SAE | 6.85 | …… | |
| TDCL-163S | 3/8 ODF | 6.24 | 4.8 | |
| TDCL-164 | 1/2 SAE | 7 | …… | |
| TDCL-164S | 1/2 ODF | 6.3 | 4.8 | |
| TDCL-165 | 5/8 SAE | 7.32 | …… | |
| TDCL-165S | 5/8 ODF | 6.56 | 4.8 | |
| TDCL-167S | 7/8 ODF | 7.13 | 4.8 | |
| TDCL-303 | 3/8 SAE | 9.61 | …… | |
| TDCL-303S | 3/8 ODF | 9 | 8.13 | |
| TDCL-304 | 1/2 SAE | 9.88 | …… | |
| TDCL-304S | 1/2 ODF | 9.06 | 8.06 | |
| TDCL-305 | 5/8 SAE | 10.31 | …… | |
| TDCL-305S | 5/8 ODF | 9.31 | 8.06 | |
| TDCL-306S | 3/4 ODF | 9.68 | 8.43 | |
| TDCL-307S | 7/8 ODF | 9.88 | 8.38 | |
| TDCL-309S | 1-1/8 ODF | 10.43 | 8.5 |
