TFK Series BI-Flow Liquid Line Filter Drier
TFK Series BI-Flow Liquid Line Filter Drier
Product Description:
- TFK series Bi-Flow liquid line filter-drier, using high-quality compression of small spherical particles sintered desiccant module, combined with high-density filter mesh, each end of the installation of a non-reflux valve can reverse Impurities, to the role of drying filter,that can effectively filter residual water and debris in the system.
- Small spherical particles of high strength sintered desiccant module,to make run-time without shock and friction,reduce wear of the desiccant
- High moisture and acid removal capacity
- Drying and filtering effect of combining,both ends of the installation of a non-reflux valve,two-way operation can intercept stolen goods
- Filtration:20microns
- With minimum pressure drop design allows the system to play better energy efficiency in the run-time
- Corrosion resistant epoxy powder paint finish.salt spray test above 500 hours
- Two kinds of connection methods: ODF and SAE;In order to facilitate welding, ODF adoption of TP2 copper reserve.
- For a variety of refrigerant
- Maximum working pressure:4.7Mpa/680Psig.
- Ul listed

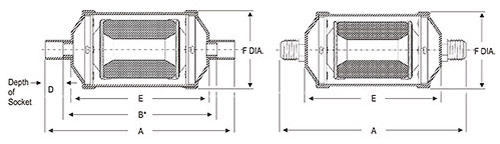

| MODEL | CONNECTION(IN) | A(IN) | B(IN) | C(IN) | E(IN) | F(IN) |
| TFK-052 | 1/4 SAE | 5.06 | …… | …… | 3.33 | 2.50 |
| TFK-052S | 1/4 ODF | 4.74 | 3.52 | 0.61 | ||
| TFK-053 | 3/8 SAE | 5.49 | …… | …… | ||
| TFK-053S | 3/8 ODF | 4.82 | 3.56 | 0.63 | ||
| TFK-082 | 1/4 SAE | 5.83 | …… | …… | 4.06 | |
| TFK-082S | 1/4 ODF | 5.47 | 4.25 | 0.61 | ||
| TFK-083 | 3/8 SAE | 6.22 | …… | …… | ||
| TFK-083S | 3/8 ODF | 5.55 | 4.29 | 0.63 | ||
| TFK-084 | 1/2 SAE | 6.38 | …… | …… | ||
| TFK-084S | 1/2 ODF | 5.61 | 4.37 | 0.62 | ||
| TFK-163 | 3/8 SAE | 6.59 | …… | …… | 4.43 | 3.00 |
| TFK-163S | 3/8 ODF | 5.75 | 4.67 | 0.54 | ||
| TFK-164 | 1/2 SAE | 6.75 | …… | …… | ||
| TFK-164S | 1/2 ODF | 5.81 | 4.74 | 0.54 | ||
| TFK-165 | 5/8 SAE | 7.19 | …… | …… | ||
| TFK-165S | 5/8 ODF | 6.00 | 4.82 | 0.59 | ||
| TFK-167S | 7/8 ODF | 6.87 | 4.82 | 1.02 | ||
| TFK-303 | 3/8 SAE | 9.51 | …… | …… | 7.34 | |
| TFK-303S | 3/8 ODF | 8.84 | 7.58 | 0.63 | ||
| TFK-304 | 1/2 SAE | 9.67 | …… | …… | ||
| TFK-304S | 1/2 ODF | 9.00 | 7.66 | 0.67 | ||
| TFK-305 | 5/8 SAE | 10.10 | …… | …… | ||
| TFK-305S | 5/8 ODF | 9.23 | 7.74 | 0.75 | ||
| TFK-306 | 3/4 SAE | 10.45 | …… | …… | ||
| TFK-306S | 3/4 ODF | 9.31 | 7.74 | 0.79 | ||
| TFK-307S | 7/8 ODF | 9.78 | 7.74 | 1.02 | ||
| TFK-309S | 1-1/8 ODF | 10.00 | 7.89 | 1.06 |
