Product Description:
Replaceable Core Filter Drier

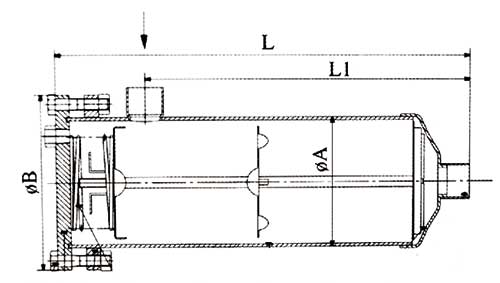

| ITEM NO. | CONNECTIONS | DIMENSIONS(inch) | CORE | |||
| ODF(inch) | L | L1 | A | B | QTY | |
| RFD-485T | 5/8 | 9.31 | 6.09 | 4.5 | 6.05 | 1 |
| RFD-487T | 7/8 | 9.35 | 6.25 | 4.5 | 6.05 | 1 |
| RFD-489T | 1-1/8 | 9.38 | 6.31 | 4.5 | 6.05 | 1 |
| RFD-4811T | 1-3/8 | 9.75 | 6.44 | 4.5 | 6.05 | 1 |
| RFD-967T | 7/8 | 15.13 | 11.87 | 4.5 | 6.05 | 2 |
| RFD-969T | 1-1/8 | 15.19 | 11.97 | 4.5 | 6.05 | 2 |
| RFD-9611T | 1-3/8 | 15.31 | 12.06 | 4.5 | 6.05 | 2 |
| RFD-9613T | 1-5/8 | 15.31 | 12.06 | 4.5 | 6.05 | 2 |
| RFD-1449T | 1-1/8 | 20.5 | 17.25 | 4.5 | 6.05 | 3 |
| RFD-14411T | 1-3/8 | 20.75 | 17.53 | 4.5 | 6.05 | 3 |
| RFD-14413T | 1-5/8 | 20.75 | 17.53 | 4.5 | 6.05 | 3 |
| RFD-14417T | 2-1/8 | 20.94 | 17.63 | 4.5 | 6.05 | 3 |
| RFD-19211T | 1-3/8 | 26.66 | 23.41 | 4.5 | 6.05 | 4 |
| RFD-19213T | 1-5/8 | 26.66 | 23.41 | 4.5 | 6.05 | 4 |
| RFD-19217T | 2-1/8 | 26.84 | 23.63 | 4.5 | 6.05 | 4 |
| RFD-30013T | 1-5/8 | 24.78 | 19.66 | 6.0 | 7.87 | 3 |
| RFD-30017T | 2-1/8 | 24.78 | 19.87 | 6.0 | 7.87 | 3 |
| RFD-40017T | 2-1/8 | 34.56 | 30.50 | 6.0 | 7.87 | 4 |
| RFD-40021T | 2-5/8 | 34.75 | 30.56 | 6.0 | 7.87 | 4 |
