Time Delay
Time Delay
Product Description:
Time Delays
- UL & CUL approvals
- Max.load: 1.0amp, 10amp inrush
- Protection from short cycling of compressor
 |
 |
 |
 |
| ITEM NO. | TYPE DELAY | TIME DELAY RANG | TYPE OF ADJUSTMENT | INPUT VOLTAGE | INPUT Hz | MAX AMPS | VOLTAGE DROP |

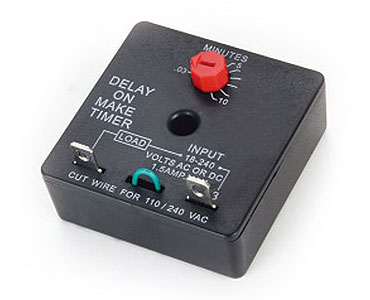

| TD-291 | on make | 1.8 sec…10min | dial | 18-240VAC | 50/60Hz | 1 | 2.5 at 1 amp. |

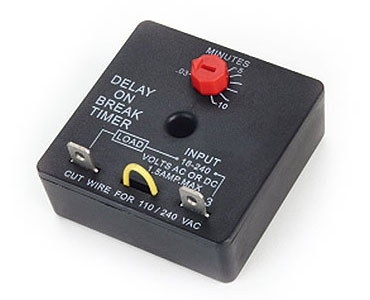

| TD-392 | on break | 1.8sec… 10min | dial | 18-240VAC | 50/60Hz | 1 | 2.5 at 1 amp. |
| TD-393 | off delay | 2 min fixed | - | 24VAC | 50/60Hz | 1 | 2 at 1 amp. |
| TD-395 | by-pass | 6sec… 8min | dial | 19-240VAC | 50/60Hz | 1 | 2 at 1 amp. |
